W50

W50

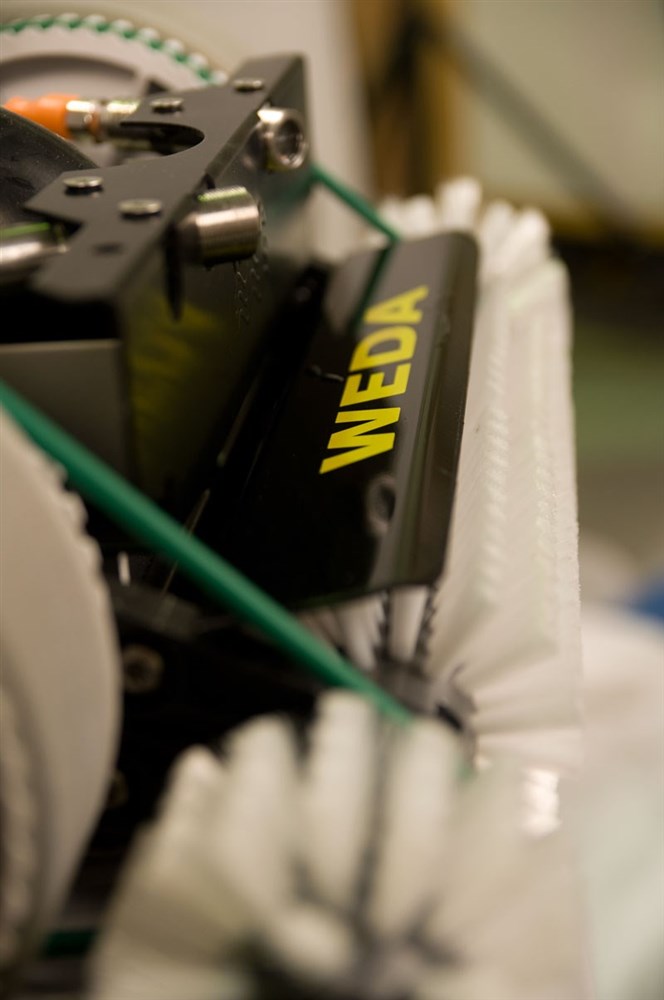

Weda W50 is a compact cleaner with a high cleaning capacity with rotating brushes and a pump that delivers 600 liters per minute. It can be equipped with a discharge hose outlet for removal of all sedimentation independent of size.
The W50 comes in different versions:

W50 Standard – A fully automatic cleaner for rectangular pools

W50 R – A completely automatic cleaner which calculates its turns during operation

W50ST3A – The latest addition to the W50 - series. Based on the W50 R with an added programming option. Three (3) individual cleaning patterns can be programmed and saved.

All versions can also be controlled with the radio remote for access to hard-to reach areas. The new laser sensor design allows for fully automatic cleaning with no moving parts for the control functions. As with all Weda cleaners the W50 is based on an electrical submersible pump with a high resistant metal impeller to safeguard reliable cleaning that does not get interrupted by the larger particles frequently found in public pools.

Technical Data

  • Weight in air: approx. 28 kg
  • Weight in water: approx. 12 kg
  • Dimensions (LxWxH): 65 x 50 x 30 cm
  • Suction capacity: 600 liters/minute
  • Speed in automatic mode: 0,2 meters/second
  • Mains voltage 1-phase 50/60Hz: 110/230 V
  • Max. power output: 1.1 kW

Standard equipment

  • The W50 cleaning unit
  • Control box
  • Filter bag 120 micron
  • Power supply cable, 2 meters
  • Radio remote control
  • Umbilical (floating cable), 30 meters

Optional Equipment and Accessories

  • Trolley
  • Beach control – makes the cleaner turn back if it travels out of water)
  • Discharge hose connection 2”)
  • Filter bag 50 micron)
  • 40 meter Umbilical (floating cable)

For more information:

  Download brochure W50 Standard and W50 R   Download brochure W50 R   Download brochure W50 ST3A  Download Operating Manual W50 Standard  Download Operating Manual W50 R
